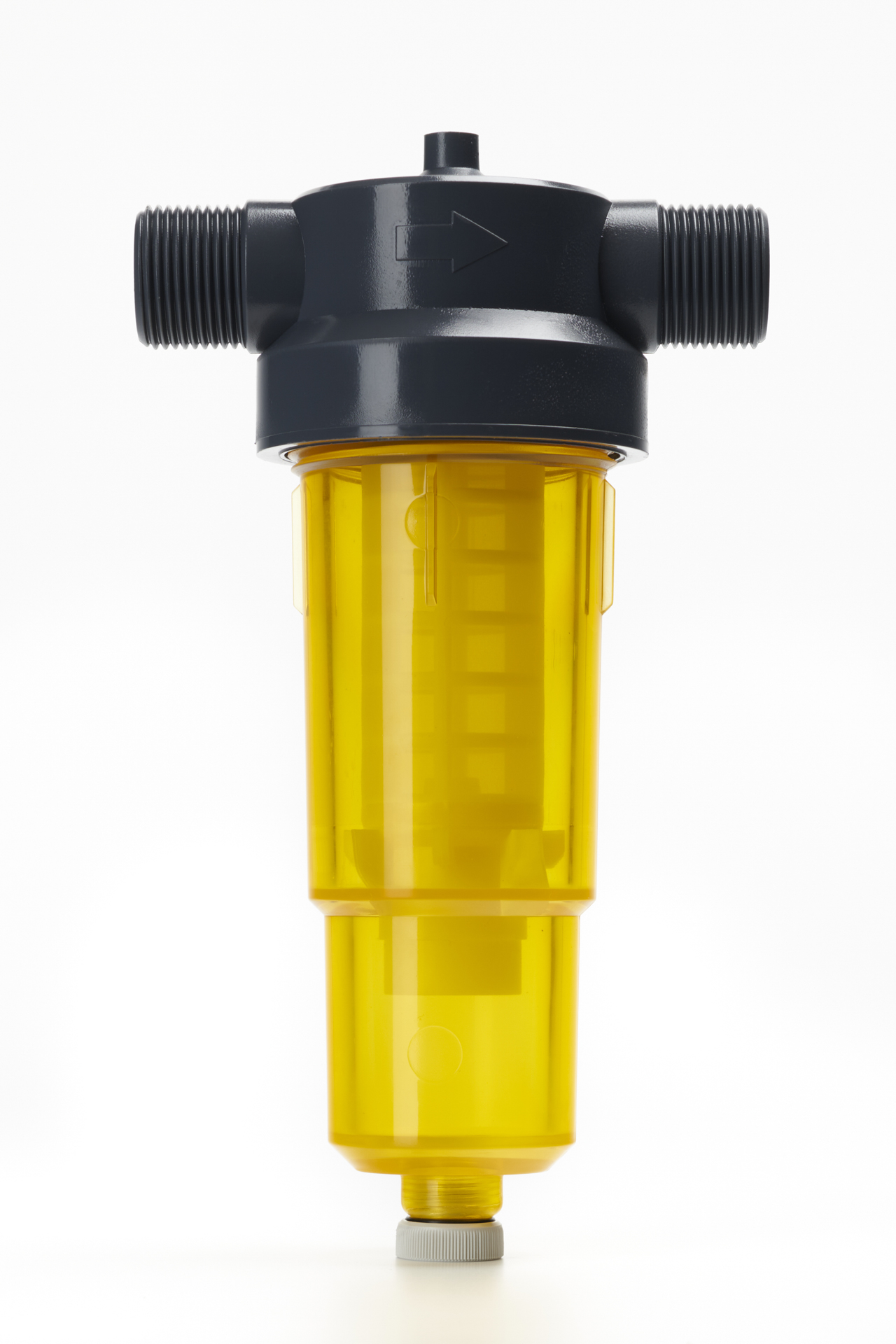

YDRONET Filter ensures safe water filtration. YDRONET water filter is equipped with an approved non-return valve (KIWA, DVGW, NF, WRc, SITAC, ETA). Standard filter cartridge is 50 microns.
The life of taps, pipes and sanitary appliances is significantly extended. Premature wear and corrosion are prevented and the drinking water quality improves.
YDRONET filter is an easy-to-install, largely self-cleaning water filter. Filter cartridge easily replaceable over time (annually). A water filter with pulsation damper that protects your installation, appliances and machines against water hammer.
Some applications:
- Drinking water installations: to clean the water from sand, impurities, sediment, etc.
- Underfloor heating: to continuously clean the circulation water from iron particles and others.
- Sprinkler systems: to filter the spray water from impurities.
- Pumps, valves and nozzles are protected.
Variants for:
- water filter cartridge with filter cloth in stainless steel - 50 micron.
- water filter cartridge equipped with 20 micron and 5 micron filter cloth on request.
- water filter cartridge with pulsation damper (against water hammer in the pipe) on request.
Technical specifications:
| Connection | ¾" BSP |
| Device length | 115 mm |
| Height | 210 mm |
| Diameter | 72 mm |
| Weight | 0,370 Kg |
| Flow | 3000 l/h |
| Workload | 10 Bar |
| Test pressure | 25 Bar |
| Pressure loss | 0,2 – 0,7 Bar |
| Temperature | 1°C – 30°C |
| Filter cloth | Nylon/Polyester (in stainless steel option) |
| Filter fineness | 50 micron |
| Material | PVCu , POM , ABS |
| Check valve | Internationally approved KIWA, DVGW, NF, WRc, SITAC, ETA |
